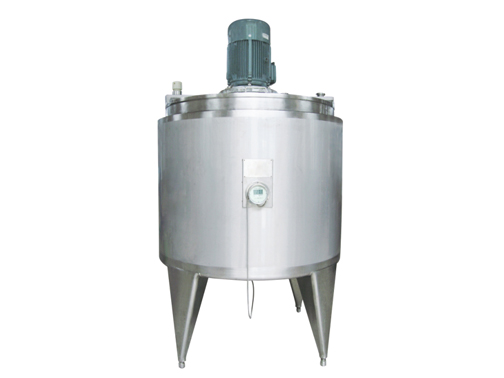

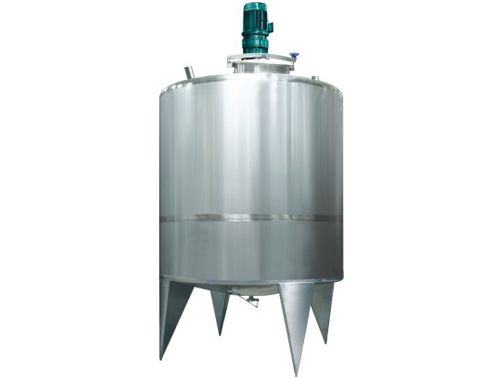

High Speed Shearing/Emulsification Tank

Product consultation

High speed shearing emulsification tank is one of the most advanced mixing equipment in China presently, which is widely used in dairy, beverage and other liquid food industry. It absorbed foreign advanced technology, and with specialstirrer structure, unique mixing and emulsification function.

Application Fields

It can be used in emulsion reagent, paint, dye, paper, pesticide etc. chemical and light industry, which can fastmixing, dispersing, emulsifying, homogenizing, crushing, suspending and dissolving liquid-liquid, liquid-solid product.

Equipment characteristics

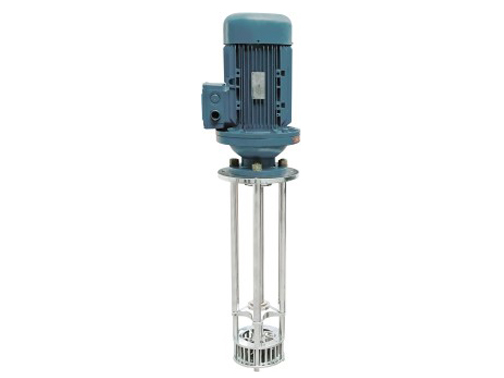

The stirrer is composed of joint rotor and stator two parts, rotor high speed revolution, stator fixed. When high speed emulsifier working, it throwing rotor surrounding product at high speed to stator, and through stator tooth interval, to emulsify, collide and crush between rotor and stator, thus to realize high speed emulsification. This equipment has many functions like mixing, emulsification, homogenization, dissolving and crushing etc.
Easy and flexible operation, three structure: single layer, double layer with insulation, three layer.

Technical parameters

Model	Effective volume(L)	Inner diameter(mm)	Total height(mm)	Emulsifier Motor power(KW)	Emulsifier rotary speed(r/m)
CHTY-600	600	800	2140	7.5	2900/1450
CHTY-1000	1000	1050	2380	11	2900/1450
CHTY-1500	1500	1180	2550	15	2900/1450
CHTY-2000	2000	1340	2760	18.5	2900/1450
CHTY-3000	3000	1420	2870	22	2900/1450
