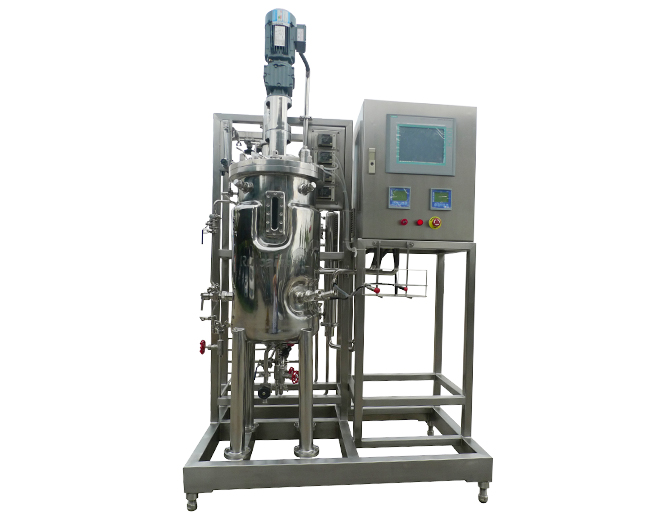

Fermentation tank

Fermentation tank is suitable for microbial fermentation, various enzyme preparations, sweet proteins, probiotics, enzymes, plant extract fermentation products, amino acids, polysaccharides, veterinary drugs, and other biological fermentation products. It can also be non-standard designed and customized according to customer special needs.

Application Fields

Equipment characteristics

Stainless steel SS316L material (glass material can be selected for 5L and 10L);
Instrument interface: pH electrode, DO electrode, temperature electrode and other interfaces are optional, online detection of various parameters such as turbidity, pressure, glucose, methanol, and specific amino acids;
Fermentation tank is suitable for fermentation of different bacterial strains. Oxygen/anaerobic, air/nitrogen. Automatic detection and control of ventilation flow during fermentation process, and online detection of tail gas O2 and CO2 content;
Mixing: Top in mechanical mixing system; primary high-efficiency defoaming propeller; various forms available, such as inclined blades, curved blades, axial flow blades, turbines, and four wide blade combinations; adjustable mixing speed, digital setting speed control aseptic machine sealing system (double end face machine sealing can be selected for 50L or above);
Fermentation tank system can achieve feedback control of various product parameters, flow feeding, acid-base regulation, defoaming treatment, adopt aseptic feeding method;
Adopt Siemens PLC controller, simple operation, complete functions, stable operation, and real-time recording of operating data. The control system can also interface with the central control room to monitor the operation of various fermentation equipment in real time;
Modular design, can quickly achieve system integration control, flexible integration, and easy to upgrade.
